Maskless lithography
for precise and fast 2.5D microfabrication

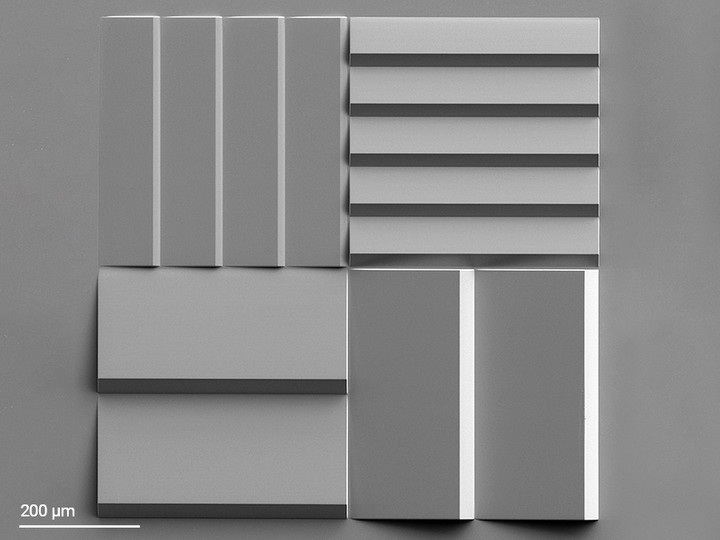

Two-Photon Grayscale Lithography
for 2.5D prototyping, mastering and patterning

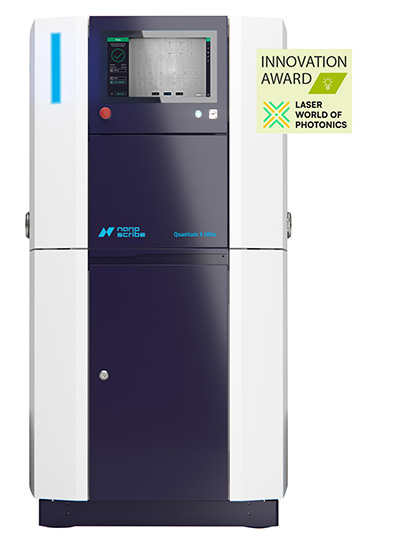

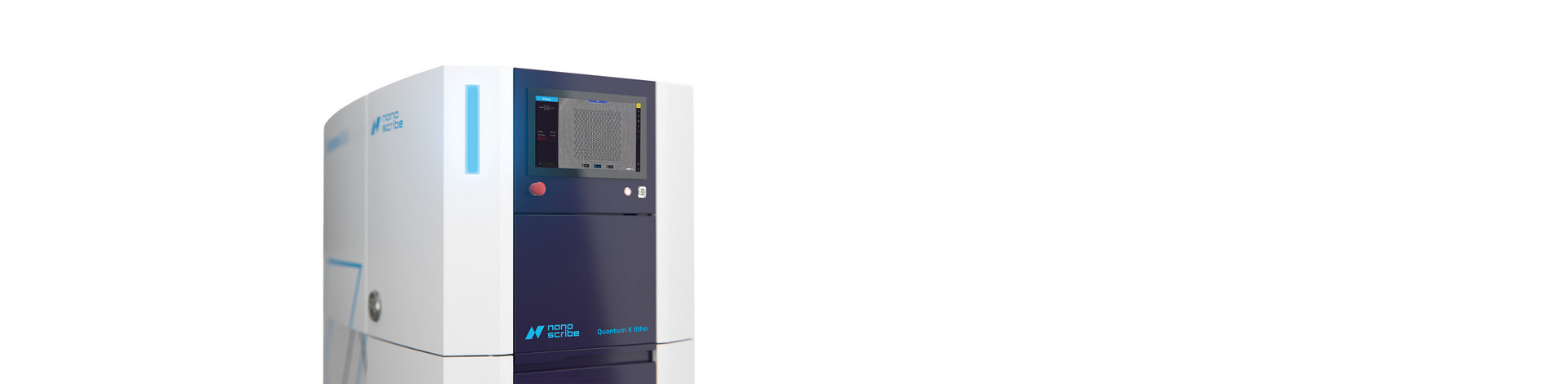

Quantum X litho is a versatile maskless lithography system offering superior design freedom and streamlined workflows – from fast job setup to high-performance printing and post-processing. It enables high-throughput 2.5D microfabrication for applications such as rapid prototyping, advanced patterning, master template fabrication, and wafer-scale production.

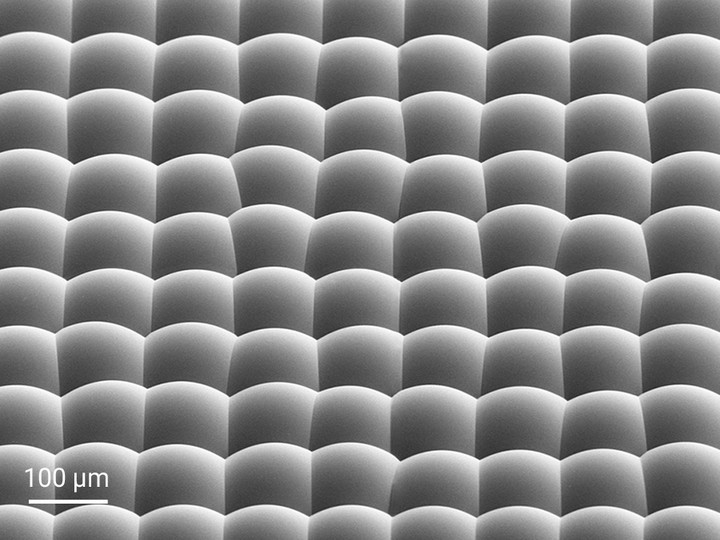

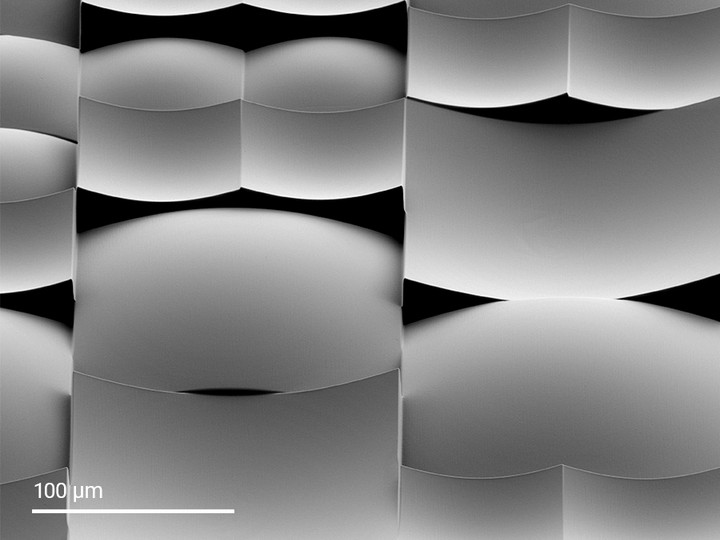

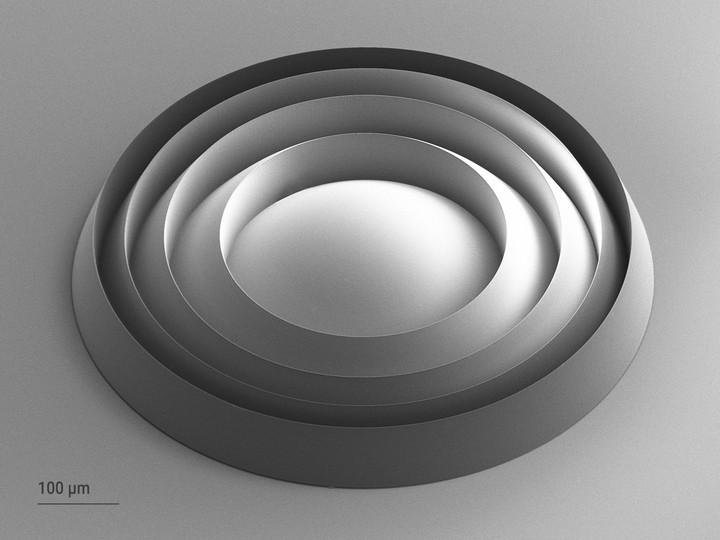

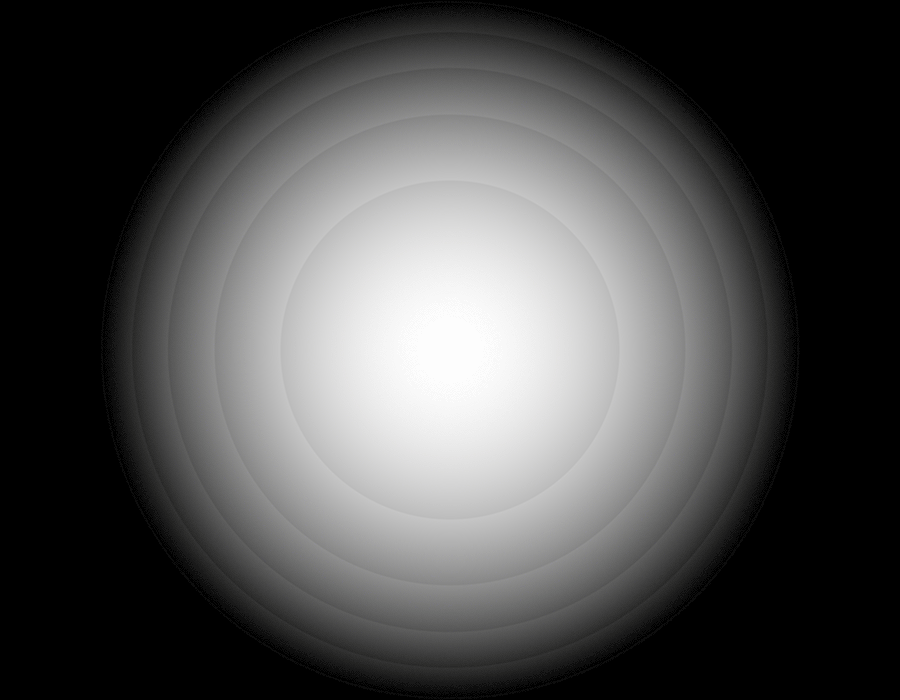

Powered by Two-Photon Grayscale Lithography 2GL®, the system delivers high-precision freeform microoptics, microlens arrays, Fresnel lenses, and hybrid optical components that combine diffractive and refractive features.
Maskless lithography for advanced designs

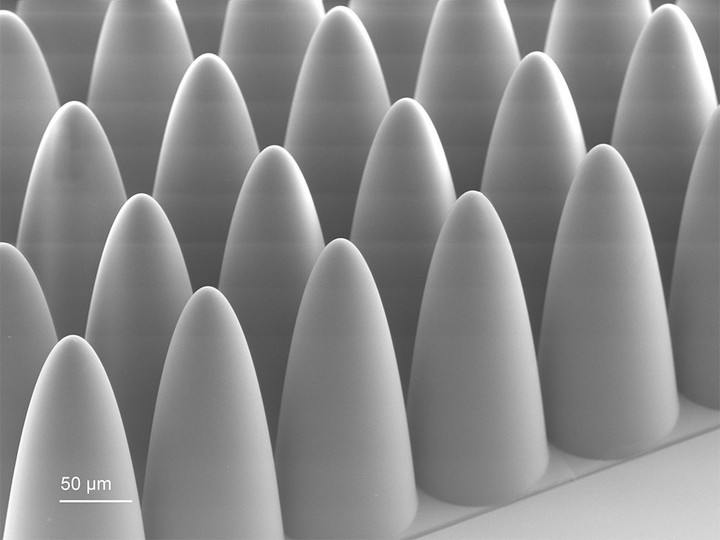

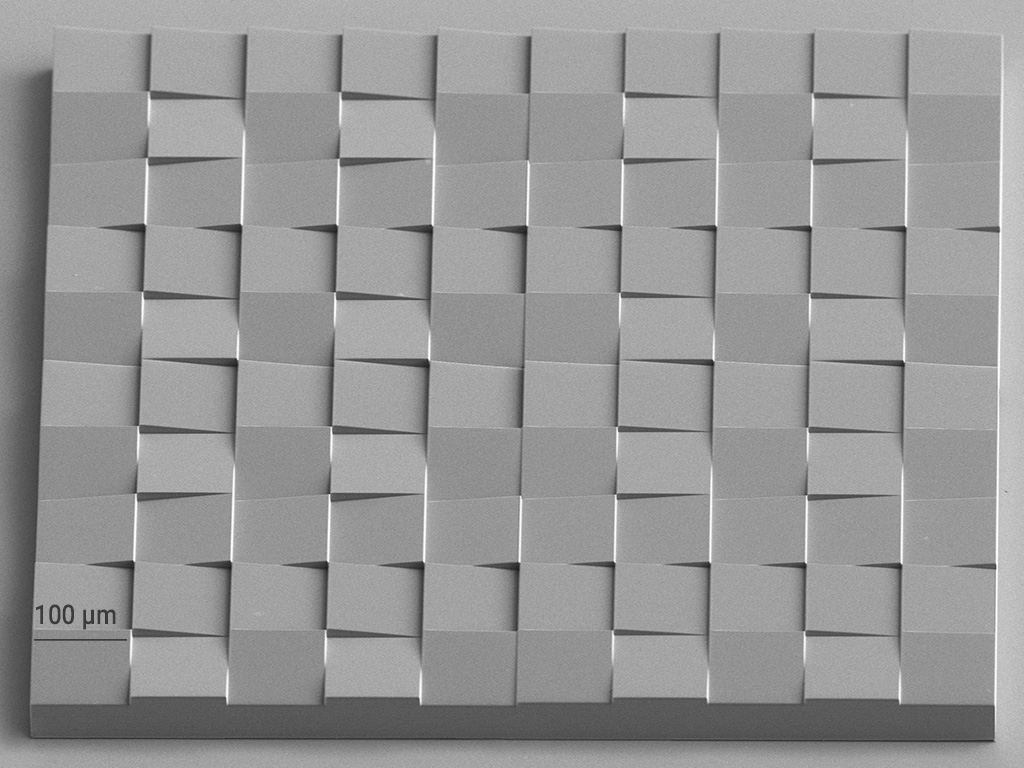

Quantum X litho also supports patterning of complex microfluidic architectures and bioinspired topographies, including organic nano- and microstructured surfaces. The proprietary 2GL® technology combines high throughput with exceptional shape accuracy, enabling advanced 2.5D designs with tall features up to 1,000 µm, thus exceeding conventional height limitations.
Top-tier industrial performance

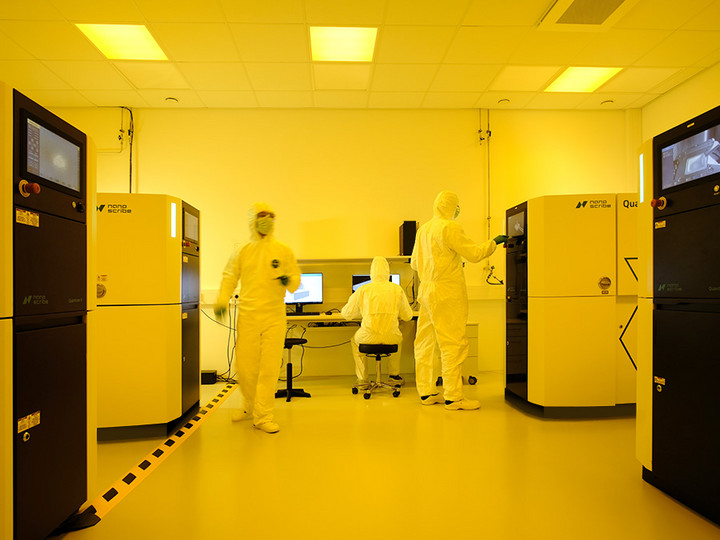

2GL® accelerates innovation through rapid design iteration — enabling sub-day cycles from concept to printed part. Structures printed with Quantum X litho seamlessly integrate into industrial replication workflows such as nanoimprint lithography, hot embossing, and micro injection molding. Combined with nanoPrintX, the confocal detection module ensures precise alignment for wafer-level production. The optional 3D printing by 2GL® mode expands the system’s capabilities toward advanced 3D printing.
2GL® grayscale lithography
enabling rapid prototyping, patterning and mastering
Quantum X litho in facts and figures
Included features
-
Stunningly rapid and accurate 2.5D printing enabled by Two-Photon Grayscale Lithography (2GL®)
-

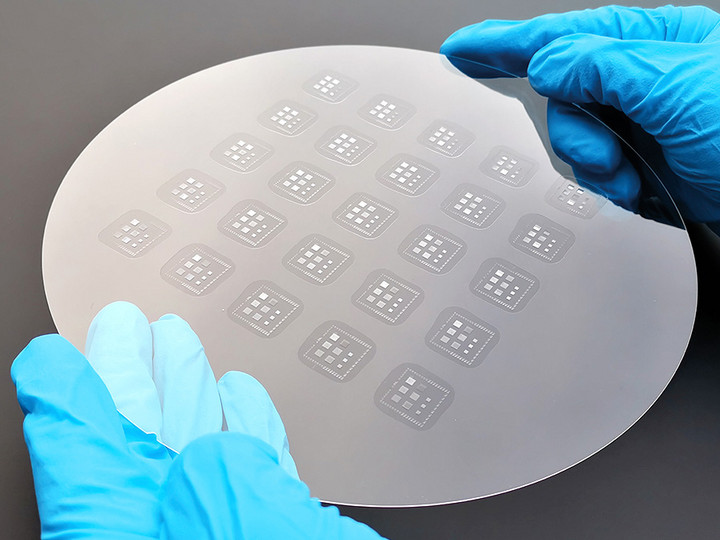

Wafer-scale production on transparent and opaque wafers
Optional features
-
High-resolution 3D printing based on Two-Photon Polymerization (2PP) for intricate nano-, micro- and mesostructures
-
Up to 60 times faster speeds at superior quality compared to classic 2PP, achieved through 3D printing by 2GL® (Two-Photon Grayscale Lithography)
-
Aligned 3D printing on various substrates enabled by Aligned 2-Photon Lithography (A2PL®)
-
Automatic alignment to fiducials on wafers enabled by confocal detection module
-
Automatic printing aligned to fiber cores enabled by the Fiber Printing Set
-
Automatic dispenser for efficient batch processing and wafer-level production
| Surface roughness (Ra) | down to ≤ 5 nm |
| Feature size control | down to 100 nm in x/y direction |
| Shape accuracy (Sa) | down to ≤ 200 nm |
| Stitching-free part diameter | up to 1,750 µm |
| Maximum scan speed | 6.25 m/s divided by lens magnification |
Given peak values, only achieved under specific conditions such as printing parameters, print heads, photoresins and designs.
| Substrates | Wafers from 1” to 8” (25.4 mm to 200 mm) Glass, silicon, and further transparent and opaque materials |
| Photoresins | Nanoscribe polymer photoresins Open to third-party or custom materials |
Industrial manufacturing workflows
enhanced by Quantum X litho features
Prof. Dr. Harald Giessen, University of Stuttgart
My first print job worked flawlessly and the structure is stunningly good, if not to say sensational. I have never seen anything like this before.
Quantum X
Your configurable platform
Not sure if Quantum X litho is the best match for your application?
Explore the entire Quantum X platform to compare our printers and discover the configuration options that best suit your requirements, from printing technologies and application sets to software solutions.
Quantum X litho Software
How to get started with your print job
Prepare and control your print job via touchscreen or remotely
The simple and convenient workflow makes it easy to integrate Quantum X litho into industrial manufacturing environments and multi-user scenarios. What makes it so simple? You can upload, print, and monitor your print job directly from the device’s touchscreen or remotely from your PC. And these are just some of the reasons to connect with Nanoscribe Quantum X litho.
Generate your 2.5D print job with GrayScribeX: In just a few steps, the print job development software guides you from creation to uploading your individual project to the maskless lithography system Quantum X litho.
For 3D print jobs we offer two powerful software solutions, DeScribeX and nanoPrintX. Each serves a distinct purpose to address different needs in your workflow.
Start your print job via the touchscreen: The intuitive touchscreen menu of Quantum X litho easily guides you to successful printing. Also benefit from essential data such as hardware information, system status and the print progress. Furthermore, a live view of the print process via three cameras gives you a visual control at any time.
Stay connected with nanoConnectX: Start and monitor your print job from the office with the remote access software nanoConnectX. The Quantum X systems are therefore well equipped for industrial manufacturing environments and multi-user scenarios.
Software facts
GrayScribeX is a specially developed software for creating individual print jobs for Quantum X litho. You can import standard grayscale images or CAD models that are automatically converted into grayscale images. A smart software routine translates the gray values from the imported design into the heights of the print object and precisely sets the calibrated print parameters.
| Key feature | Benefits |
| Import of 16 bit grayscale images and CAD files | Use standard image files .bmp and .png as well as the CAD format .stl |
| Remote upload of print jobs | Work and connect remotely with Quantum X litho from the office |
| Add, remove and duplicate structures to the print job | Create print jobs of different structures in one file |
| Rescale your structures and create arrays | Modify the structures to meet individual requirements for the corresponding application |
| Field-proven print parameter presets | Benefit from ready-to-use preset parameters for straightforward printing of any grayscale design |
| Internal calibration files | Easily translate your gray values into the corresponding writing parameter |
| .nano files | Take advantage of the container file format that includes all necessary information for data exchange and a successful print in a single file |
Control and monitor the Two-Photon Grayscale Lithography system using the Quantum X litho front panel touch screen, the graphical user interface (GUI). It guides you to a successful print in just a few steps. Select your print project, then load your substrate and print.
| Key feature | Benefits |
| Three live cameras | Monitor the printing process online from three perspectives and always be up to date on the current status of your print job |
| Stage control in x, y and z direction | Move the stage to any position on the substrate to define your print area |
| User-friendly print setup | Select resin and substrate, and start the print job with just one click |
| Project list | Keep track of the entire print job history |
| Automatic interface finder | Identify the interface of the substrate with submicrometer accuracy |
nanoConnectX is the remote access software for the Quantum X systems. It brings all the functions and display capabilities of the touchscreen to any computer connected online.
| Key feature | Benefits |
| Remote access to the system | Connect Quantum X litho to your computer, no matter where you are |
| Use all features of the touchscreen | Prepare, control and monitor your print jobs from any location |
| Upload and download print jobs and reports | Direct access from your computer towards print related files |
Quantum X litho
Let's explore your possibilities
Still on the search? Discuss your questions with Jochen, our product expert, in a no-obligation 20-minute meeting.
We also invite you to schedule a personalized product demonstration, online or on-site, to experience the power of Quantum X litho.
