Innovative refractive microoptics

Additive manufacturing with highest precision enables the fabrication of cutting-edge refractive microoptical elements. Benefit from the design freedom and optical quality of Two-Photon Grayscale Lithography for your innovations: Almost any shape can be fabricated, from spherical, aspherical to freeform and hybrid designs.

Additive microfabrication of high-precision microoptics

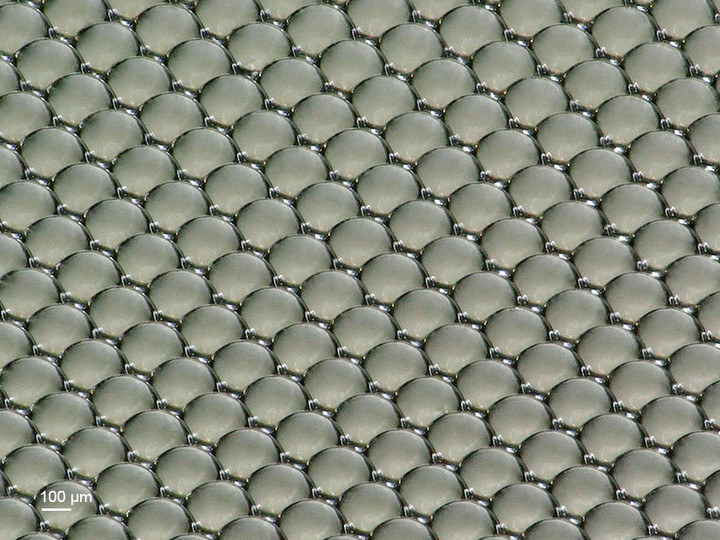

Single microoptical elements, arrays with high fill factors up to 100% and almost arbitrary shapes such as spherical, aspherical and even freeform optics are directly printed in a rapid, tool-free and maskless process. With Nanoscribe systems you achieve smooth surfaces with excellent optical quality.

Nanoscribe offers Quantum X maskless lithography system for 2.5D refractive microoptics. This system fabricates nearly any imaginable design with excellent shape accuracy. Thanks to Nanoscribe’s Two-Photon Grayscale Lithography (2GL ®) technology, microoptics are printed in a single layer by modulating the laser power according to the lens contour. This approach reduces print times drastically. Larger lenses are achieved as well with multiple layers.

Refractive microoptics
application opportunities

Looking to assess the opportunities for your refractive microoptics project? Explore the application options of our 3D Microfabrication solutions and view the 10 most recent scientific publications in materials engineering from over 1,800 peer-reviewed journal articles.
To view the details of the publications and to find more research topics and applications in which Nanoscribe printing systems are successfully used, just enter our premium resources - log in or register for free.

2024/03/11

3D nanoprinted catadioptric fiber sensor for dual-axis distance measurement during vitrectomy

2024/03/07

Magnetic position sensing for self-calibration and image registration of scanning fiber endoscopes

2024/01/17

A multi-photon-focus 3D laser printer based on a 3D-printed diffractive optical element and a 3D-printed multi-lens array

2023/12/12

On Iterative Pre-Compensation of 3D Laser-Printed Micro-Optical Components Using Confocal-Optical Microscopy

2023/11/29

Effects of high-power laser radiation on polymers for 3D printing micro-optics

2023/10/20

High-spatial density snapshot imaging spectrometer enabled by 2-photon fabricated custom fiber bundles

2023/07/23

Alvarez varifocal X-ray lens

2023/07/19

In-situ Quantitative Phase Imaging during Multi-photon Laser Printing

2023/07/10

Real-time, deep-learning aided lensless microscope

2023/07/03

Fabrication of Multifaceted Mapping Mirror using Two-photon Polymerization (2PP) for Snapshot Image Mapping Spectrometer (IMS)

View more innovation projects

You get more publication examples and deeper insights within our premium resources. Via a keyword-underpinned database you find more than 1,800 scientific publications of our customers in specific application areas. Make use of the tool to gather valuable know-how and background information about the manifold application options.
